Charger Bc 9000 Evo+ Charge/test

Description Charger Bc 9000 Evo+ Charge/test

BATTERY CHARGER BC 9000 EVO+ Charge/Test

Dealer Product Code: 700BC9000EP

This product is a modified and improved version of the BC 9000 EVO. Find out the differences by clicking here.

• 100% Made in Italy, 5 year warranty.
• 3 PROGRAMS: CAR for car batteries (max charge current: 9 Amp), BIKE for motorcycle batteries (max charge current: 1 Amp), START&STOP for AGM/EFB batteries (max charge current: 5 Amp). TESTER MODE for checking: state of battery charge and discharge, and proper operation of the alternator/regulator on the vehicle.
• For ALL types of conventional 12V batteries, from lead-acid to AGM, from 1,2 Ah up to 200 Ah.
• SAFE. YOU WILL NOT HAVE TO DISCONNECT THE CAR BATTERY! NOR REMOVE THE BATTERY CAPS. TO BE LEFT CONNECTED AT ALL TIMES FOR MONTHS AT A TIME. No leakage or reduction of fluid in the battery (electrolyte).No sparks. Protections against: reverse polarity, short circuit, overcharge, overheating.
• Technology recommended by top manufacturers of diesel, gasoline and hybrid motorcycles and cars up to 5000 cc
• 100% AUTOMATIC 8-CYCLE INTELLIGENT charging and maintenancealgorithm: initialization, recovery (from 1,25V), light charge, main charge, desulfation, analysis, maintenance and equalization.
• Increases your battery life by up to 4 times. MAXIMUM EFFICIENCY, minimum energy consumption (maximum 2 euros per year energy bill for 365 days / h 24 continuous use).
• Automatic charging and maintenance algorithm provides automatic temperature compensation, in other words, the charger determines the ideal charging curve based on the temperature detected in the surrounding environment

Through collaboration with leading Automobile manufacturers, our products are tested and approved for use on all brands of cars on the road (Abarth, Acura, Alfa Romeo, Audi, Bentley, BMW, Bugatti, Buick, Cadillac, Chevrolet, Chrysler, Citroën, Dacia, Daihatsu, Dodge, Ferrari, Fiat, Ford, Honda, Hyundai, Infiniti, Jaguar, Jeep, Kia, Lada, Lamborghini, Lancia, Land Rover, Lexus, Lotus, Maserati, Mazda, Mercedes-Benz, Mini, Mitsubishi, Nissan, Opel, Peugeot, Pontiac, Porsche, Proton, Renault, Rolls-Royce, Saab, Seat, Škoda Auto, Smart, Subaru, Suzuki, Tata, Toyota, Volkswagen, Volvo).
In addition, the current market trend is to replace diesel- or gasoline-powered vehicles with new, more environmentally friendly fuels (hybrid vehicles). Our battery chargers and maintainers are fully compatible with both traditionally fueled vehicles (Diesel, Gasoline, CNG, LPG) and mixed fueled vehicles (hybrid vehicles,e.g. gasoline + electric)

They are equipped with a wiring harness with eyelets which we recommend to be permanently installed to the battery so that the operation of connecting the product to the battery is convenient and fast.

With an elegant carbon-effect design and a very sturdy shell that prevents it from slipping and makes it resistant to scratches, falls, accidental crushing, UV rays and water (IP44) the product proves perfect for use in any circumstance and occasion.

BC 9000 EVO+ - WHAT ADVANTAGES

Our products if left plugged in continuously or at least maintained on a monthly basis for the battery (fully recharged), are able to increase the life of the battery up to 4 times. On average, a battery has an expected life span of 2 years; with bc battery controller battery chargers and maintainers, it is possible to get batteries that have a surge and life span of up to 8 to 10 years. They do not involve any electronic compatibility problems with any make and model of machine.

BC 9000 EVO+ - FOR WHICH BATTERIES
All the battery chargers/maintainers in the bc battery controller range are entirely made in Italy and therefore 100% Made in Italy, latest generation and among the safest and most advanced on the market. They perform fully automatic 8 charging cycles and designed for perfect recovery , charging, desulfation as well as very long term maintenance of starter batteries found in cars, motorcycles, scooters, campers, tractors, gardening vehicles . BC charging and maintenance technology is also ideal for stationary batteries "of home burglar alarms" . Indeed, they can be left connected 365 days a year and result in a consumption in that case of up to 2 euros of electricity in case of continuous use.
Although "deep-cycle" batteries, are usually used with 24/48/60/80V systems, BC Battery chargers and maintainers are perfect for maintaining traction batteries (also known as deep cycle), provided that each 12V bank is recharged separately (and there is no need to separate the groups of batteries connected to each other), just leave the BC connected directly to a 12V battery.

PACKAGE CONTENT

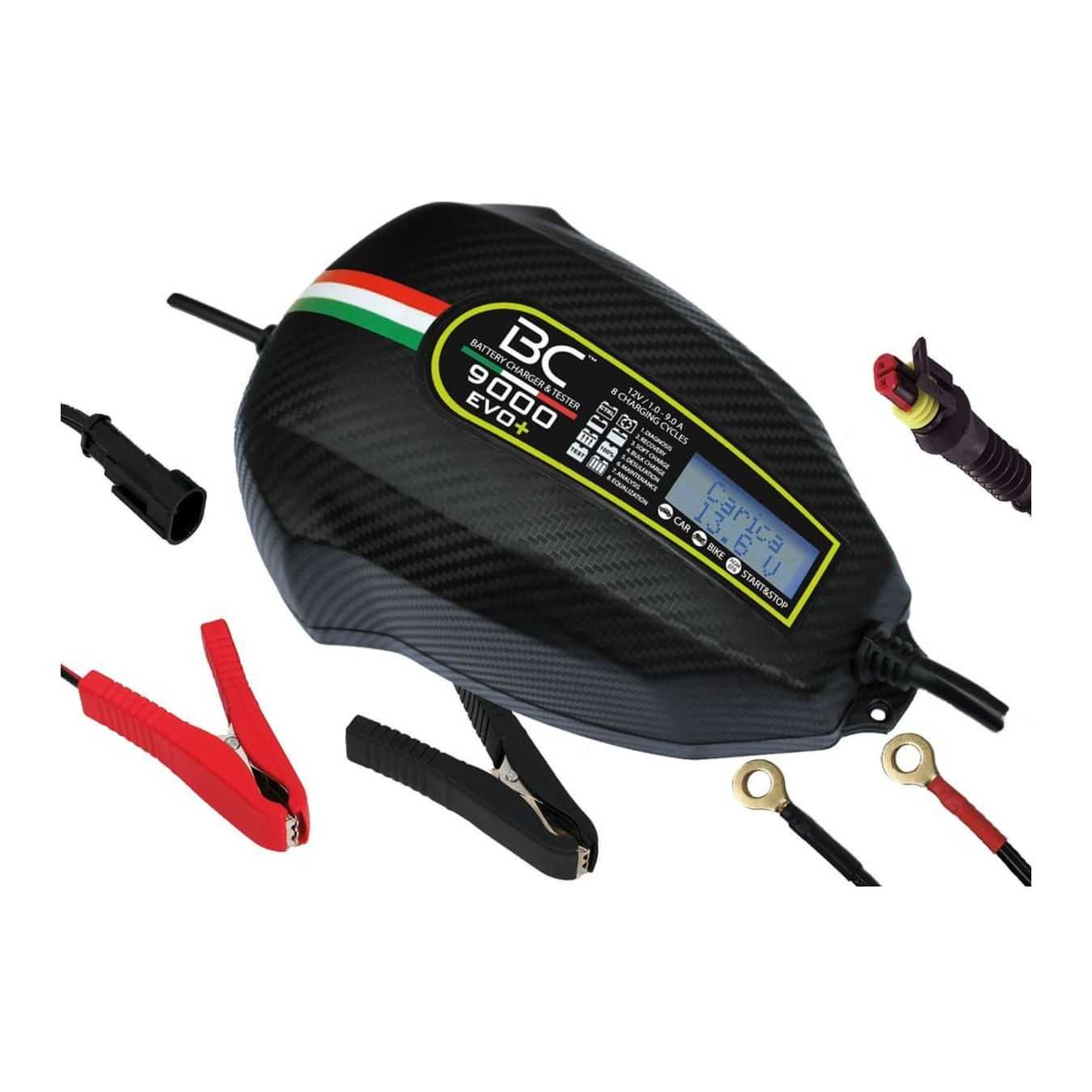

- 1 BC 9000 EVO+ charger and battery maintainer

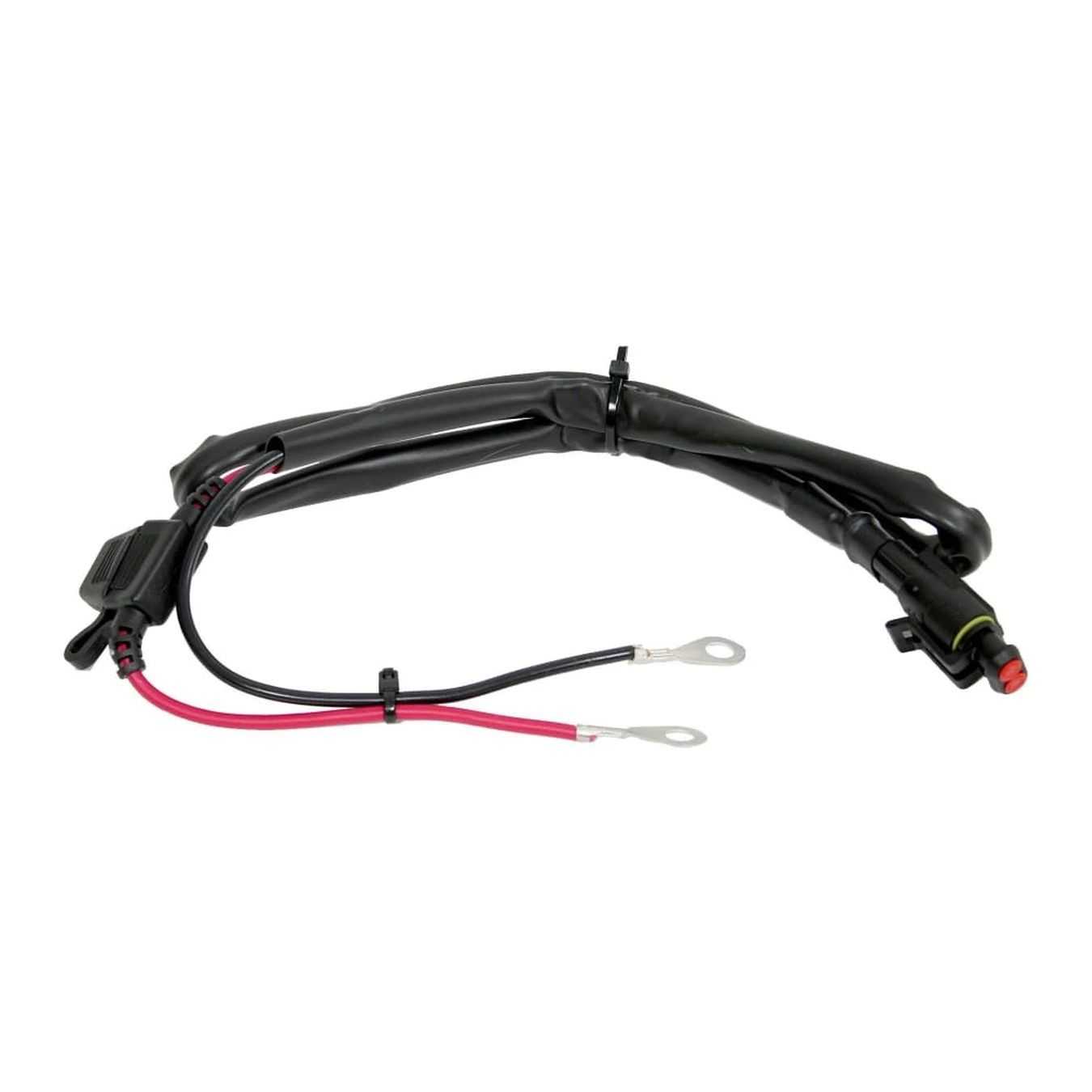

- Cable with eyelets with protective fuse

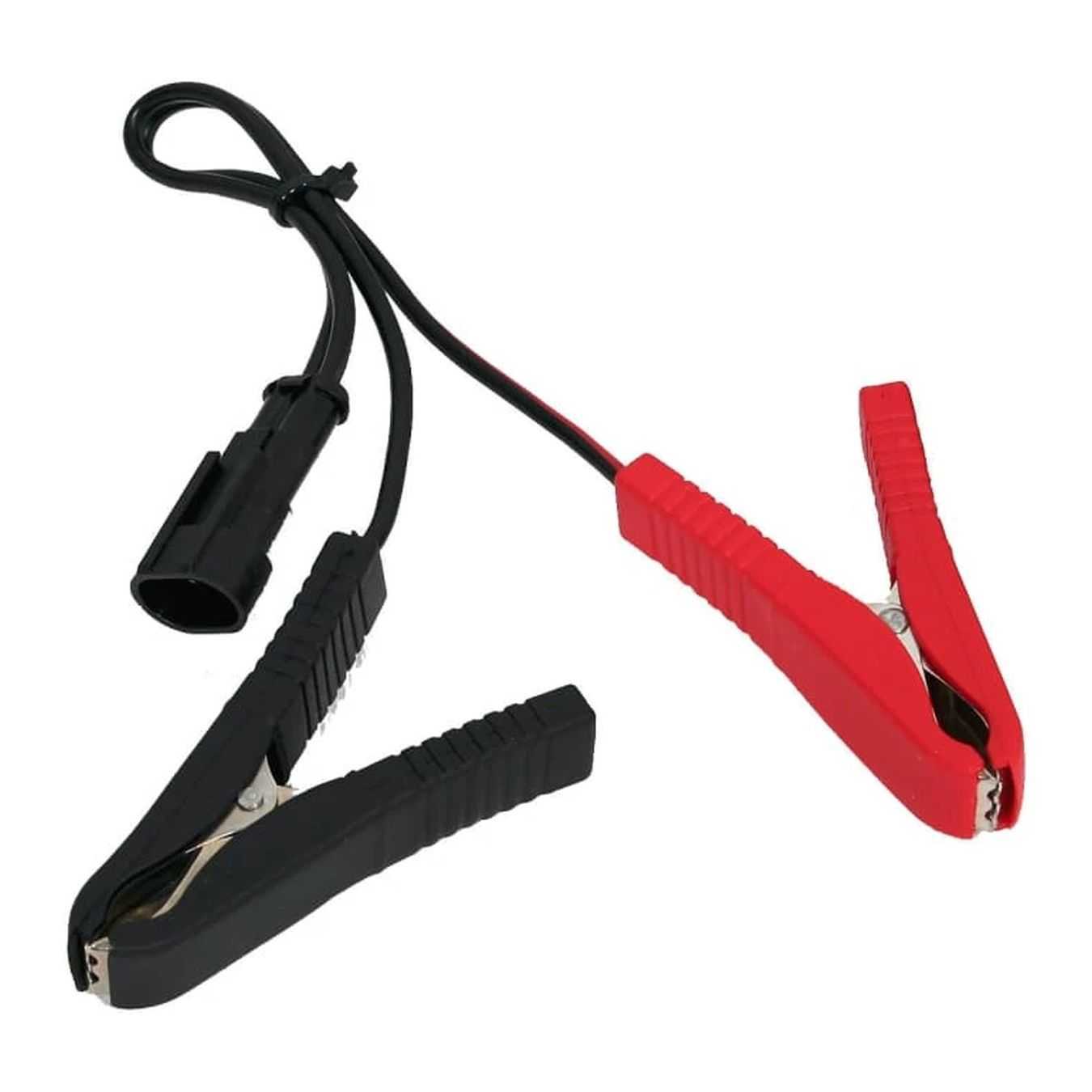

- Cable with terminals
- Complete instructions

BC 9000 EVO+ - DETAILED CHARACTERISTICS
BC 9000 EVO+ is a battery charger and charge maintainer which, thanks to its 3 selectable programs (CAR, BIKE and START&STOP), is designed for perfect and complete maintenance of all conventional12 V batteries (lead-acid & AGM) from 1,2 Ah up to 200 Ah.
For the CAR and START&STOP charging programs, the device delivers a maximum current of 9 Amp, while in the BIKE program (for motorcycles) the current delivered is 1 Amp.
The bc battery controller products recharge the battery much faster than conventional battery chargers .

The BC 9000 EVO+ model acts as a battery and alternator tester, can restore sulfated batteries, recover batteries from 1,25V (lowest level on the market) and is also designed for use on vehicles equipped with "micro-hybrid" start/stop systems.
Thanks to its spark-proof (anti-spark) system and its protections against overloads, polarity reversals and short circuits .BC 9000 EVO+ ensures a high level of protection has been tested on all makes of cars guaranteeing absolute compatibility with the electronic system of every car .
Also equipped inside with a state-of-the-art microprocessor the product is able to ensure extreme efficiency in battery charging and minimize power consumption.
The chargers and charge maintainers in the bc battery controller range being fully automatic can be left connected to the battery 24 hours a day / 7 days a week for months on end, even years completely safely.

Inside the package are convenient clamps and dei handy mounting eyelets to leave connected on the vehicle.
Also equipped with an intuitive LCD display where you can see in real time every 10 seconds the information about the battery voltage, charging cycle and the selected program (CAR, BIKE or START&STOP) is also ensured perfect night vision thanks to its backlight!
A full 5-year warranty and premium factory-direct service is recognized on the product, given the very few cases handled.

CHARGEALGORITHM - CHARGE PROGRAM
The charger is equipped by an internal microprocessor that checks the battery status in real time and performs 8 charging cycles autonomously.
- Step 1 - Initialization: verifies that the battery is in optimal condition to be charged/recovered by ensuring that there are no short circuits between one or more battery cells.
- Phase 2 - Recovery: if the battery is in an extreme discharged condition (as low as 1,25V), the device tries to perform a recovery in order to bring it to higher voltages, compatible with the next phase.
- Phase 3 - Light Charge: If the battery is very low, the device provides a pulsed light current to allow the battery to pass the critical phase.
- Stage 4 - Main Charge: during this stage, the battery can recover up to 85-90% of its capacity, thanks to the charger's ability to deliver full current.
- Stage 5 - Desulfation/Absorption: during this stage in order to restore the remaining 10-15% of the battery capacity, the device provides a "controlled overcharge" by desulfation/recovery of the lead-acid cells (for mild to medium levels of sulfation).
- Step 6 - Battery Analysis: the device interrupts the current supply for a few tens of minutes and verifies that the battery is able to retain the charge it received during previous cycles.
This step is repeated periodically at regular intervals.
- Stage 7 - Maintenance: thanks to a specially designed electronic circuit, the device maintains the battery charge during periods of non-use, without overheating, overcharging and water/electrolyte leakage.
- Stage 8 - Equalization: this stage is carried out every 30 days in order to rebalance the battery cells, thus avoiding electrolyte stratification phenomena.


BC 9000 EVO+ - FEATURES
- Three selectable charging programs: "CAR MODE" for car batteries, "START&STOP" for batteries installed in vehicles with start&stop system and "BIKE MODE" for motorcycle batteries.
- Backlit LCD display for perfect night vision (even in the distance), indicating: the active charging program (CAR or BIKE or START&STOP), the charging cycle being performed (Charging, Desulfation, Maintenance...), the battery voltage (internal digital voltmeter) and any malfunction (pole reversal, short circuit, battery not connected...).
- Multi-language software: the user can set the display language between Italian, French, English, German, Spanish or Portuguese.
- Real-time monitoring dei battery parameters during all charge cycles.
- Battery overcharge protection: activates when the internal microprocessor detects a voltage higher than a preset value; no risk of bubble formation for all batteries on the market (including MF and Gel).
- Tester function: the device will perform the following tests independently and in the sequence below :
1 . Battery idle voltage test (including estimation of its charge level);
2. Battery inrush test when starting the vehicle;
3. Vehicle charging system test (alternator/regulator).

SAFETY
1 . Protection against inversion dei battery poles.
2. Protection against short circuit (also permanent).
3. Protection against overheating: the current delivered is automatically limited in case of excessive heating of the device.

Data Sheet:
Input Voltage: 220÷240V ac, 50-60Hz
Charging Voltage: 13.8V/14.4V - nom. 12V
Charging Current: 1 A max (Bike) / 9 A max (Car/Start&Stop)
Operating Temperature: -20°C - +50°C
Dimensions: 177 x 127 x 70 mm
