Charger Bc K900 Evo+ Lead/lithium/can-bus with Ad. Accend. ACC6/12

Description Charger Bc K900 Evo+ Lead/lithium/can-bus with Ad. Accend. ACC6/12

BATTERY CHARGER BC K900 EVO+ Lead/Lithium/Can-Bus with ad. Acceding. ACC6/12V


Product Code for Dealer: 700BCK9EVO+

• 100% Made in Italy, 3 years warranty.
• Specific for all BMW motorcycle models, until MY 2020: thanks to the adapter included in the package it is possible to charge the battery directly from the 12V DIN.4165 socket present on all the motorcycles of the German company: just remove the red cap with a simple counterclockwise rotation.   YOU DON'T HAVE TO INSERT THE KEY AND TURN ON THE INSTRUMENT CLUSTER TO OPERATE THE BC K900 EVO+ IN THE SOCKET OF THE BMW
• 4 PROGRAMS: Lead Acid, Lithium, Lead-Acid Can-Bus, Lithium Can-Bus Max charging current: 1 Amp
• For ALL types of traditional 12 V batteries (from lead acid to Agm) and 12v lithium batteries of the latest generation both with lithium-ion technology and LiFePO4, from 1.2 Ah up to 100 Ah.
• SURE.  No spark. Protections against: reverse polarity, short circuit, overload, overheating.
• Technology recommended by the best motorcycle and scooter manufacturers
• 100% AUTOMATIC charging and maintenance algorithm with 7 INTELLIGENT CYCLES for lithium batteries: initialization, recovery (from 1, 25V), light charge, main charge, analysis, maintenance and equalization.
• 100% AUTOMATIC charging and maintenance algorithm with 8 INTELLIGENT CYCLES for lead-acid batteries: initialization, recovery (from 1.25V), light charge, main charge, desulfation, analysis, maintenance and equalization.
• Increase your battery life up to 4 times. MAXIMUM EFFICIENCY, minimum energy consumption (maximum 2 euros per year of energy in the bill for a continuous use of 365 days / h 24).

Thanks to the collaboration with major motorcycle manufacturers, our products are tested and approved for use on all brands of motorcycles / scooters in circulation (APRILIA, ARCTIC CAT,,BENELLI,BETA, BIMOTA, BMW, BOMBARDIER,,BUELL,BYE BIKE,CAGIVA,CAN-AM, CCM, CEMOTO, CF MOTO, CLASSIC CYCLES, CR&S, DAELIM , DAXARA, DERBI, DUCATI, FANTIC,   GILERA, HARLEY-DAVIDSON, HM-MOSER, HONDA, HUSABERG, HUSQVARNA, HYOSUNG, INDIAN, ITALJET, KAWASAKI, KTM, KYMCO, LAMBRETTA, LAVERDA, LINHAI, LML, LYNX, MALAGUTI, MANGOSTEEN, MASH, MBK, MONDIAL, MONNIER-HONDA, MONTESA, MOTO GUZZI, MOTO MORINI, MOTOBI, MOTOR MANIA, MV AGUSTA, MWH, MZ (MuZ),  NORTON, PEUGEOT, PGO, PIAGGIO, POLARIS, QUADRO, RIEJU, ROYAL ENFIELD, SACHS, SAKURA, SCOTT, SHERCO, SKIDOO, SKYTEAM, SUTER,  SUZUKI, SYM (SANYANG),  TRIUMPH, VALENTI RACING, VICTORY, YAMAHA).
They are equipped with a wiring with eyelets that we recommend to install permanently to the battery in order to make the operation of connecting the product to the battery convenient and fast.

With an elegant and compact design, with a very robust body that prevents slippage and makes it resistant to scratches, falls, accidental crushing, UV rays and water (IP44), the product is perfect to be used in any circumstance and occasion.


BC K900 EVO+ - WHAT ADVANTAGES

Our products if left connected continuously or if at least you carry out maintenance on a monthly basis of the battery (full charging), are able to increase up to 4 times the life of the battery itself. On average, a battery has an expected life of 2 years, with chargers and maintainers it is bc battery controller possible to get to have batteries that have a cue and a useful life of up to 8 to 10 years. They do not involve any problem of electronic compatibility with any brand and model of motorcycle.

BC K900 EVO+ - FOR WHICH BATTERIES
All the chargers/maintainers of the bc battery controller range are entirely produced in Italy and therefore 100% Made in Italy, of the latest generation and among the safest and most advanced on the market.
They perform 8 charging cycles in a fully automatic way, designed for perfect recovery, charging, desulfation as well as for the very long-term maintenance of starter batteries present on cars, motorcycles, scooters, campers, tractors, gardening vehicles. BC charging and maintenance technology is also ideal for stationary batteries "of domestic burglar alarms". In fact, they can be left connected 365 days a year and in this case involve a maximum consumption of 2 euros of electricity in case of continuous use.
Although "deep-cycle" batteries are usually used with 24/48/60/80V systems, BC Battery chargers and maintainers are perfect for the maintenance of traction batteries (also called deep cycle), provided that each 12V bank is recharged separately (and it is not necessary to separate the groups of batteries connected to each other), just leave the BC connected directly to a 12V battery.

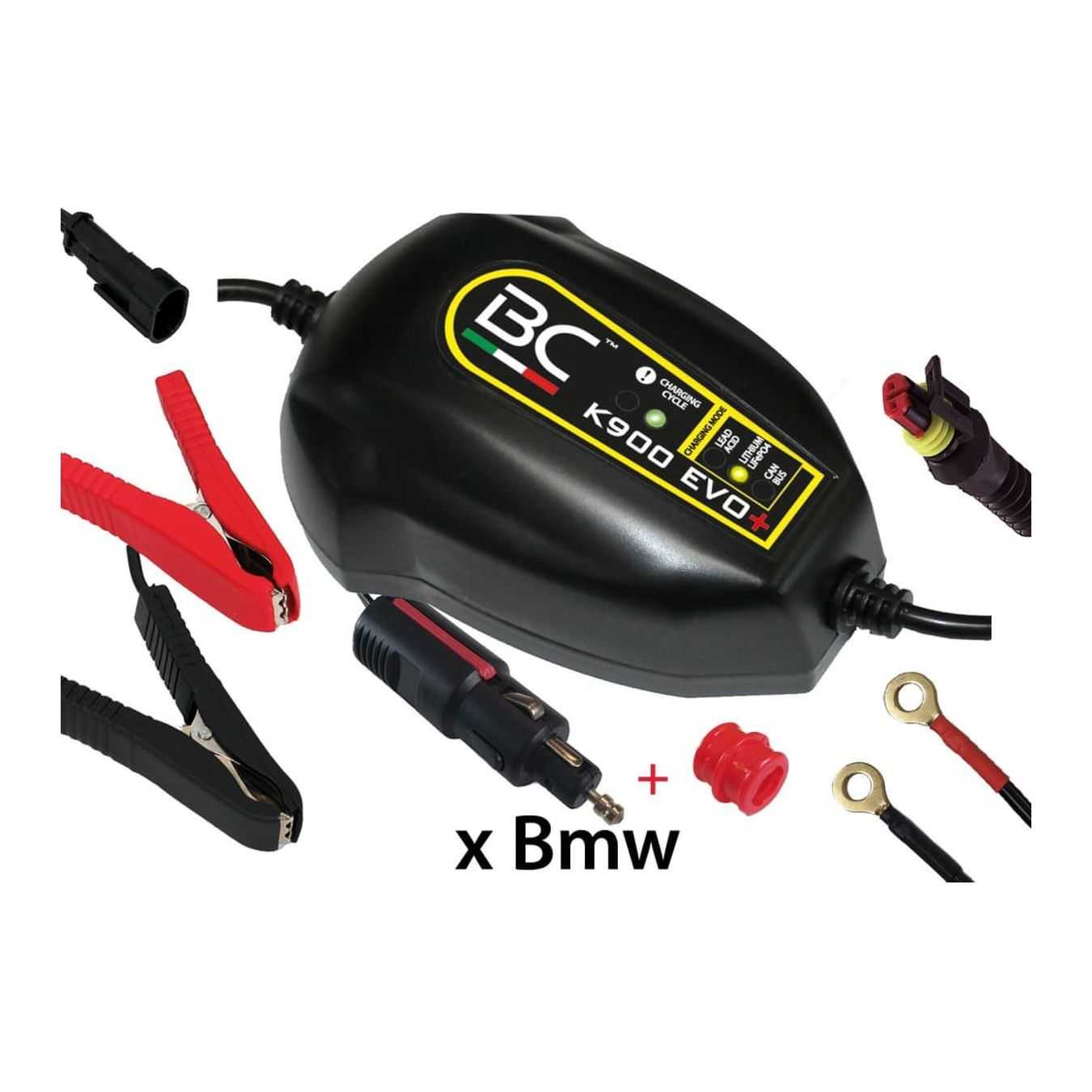

PACKAGE CONTENTS
• 1 BC K900 EVO+ charger and charge maintainer

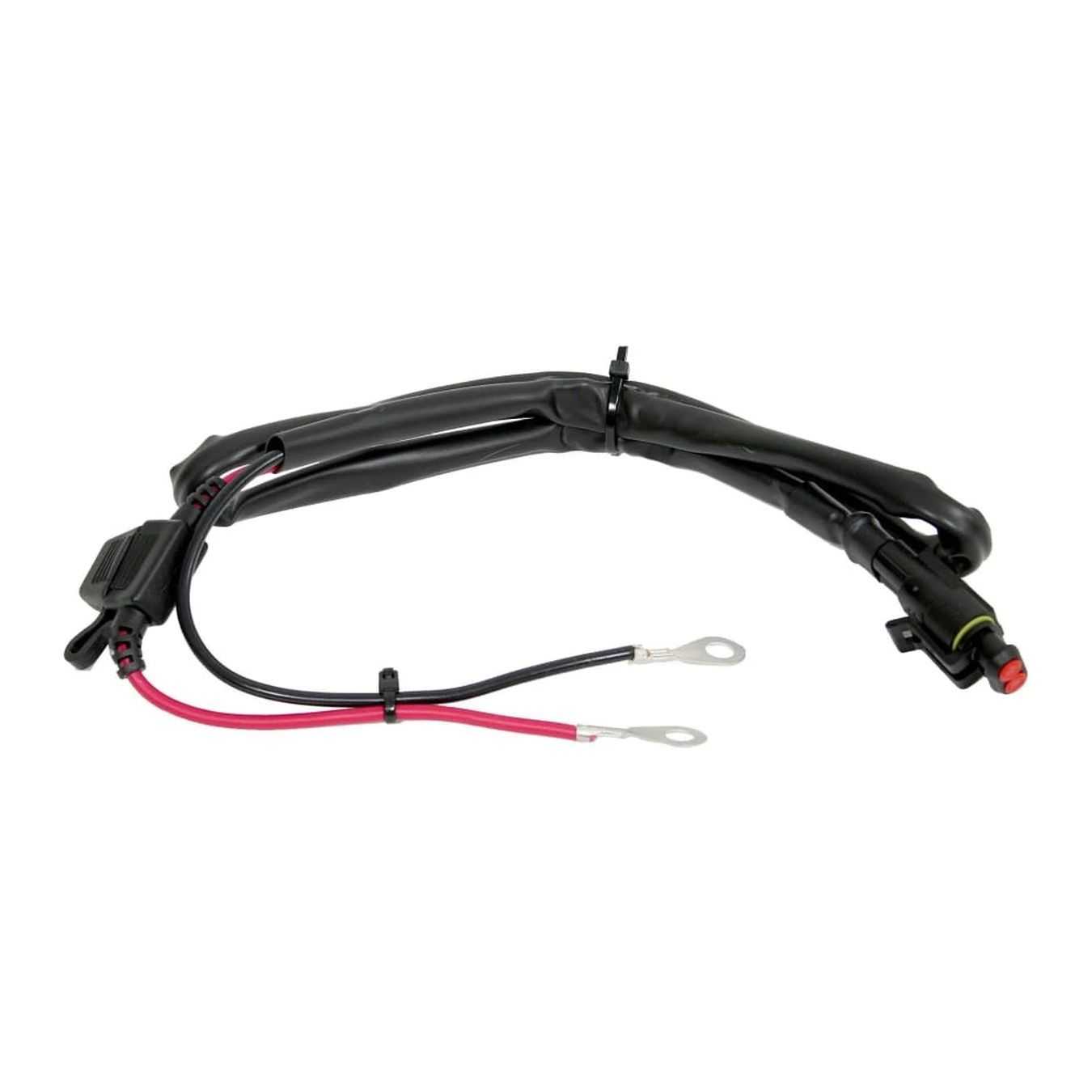

• Cable with eyelets with protective fuse
• Cable with clamps

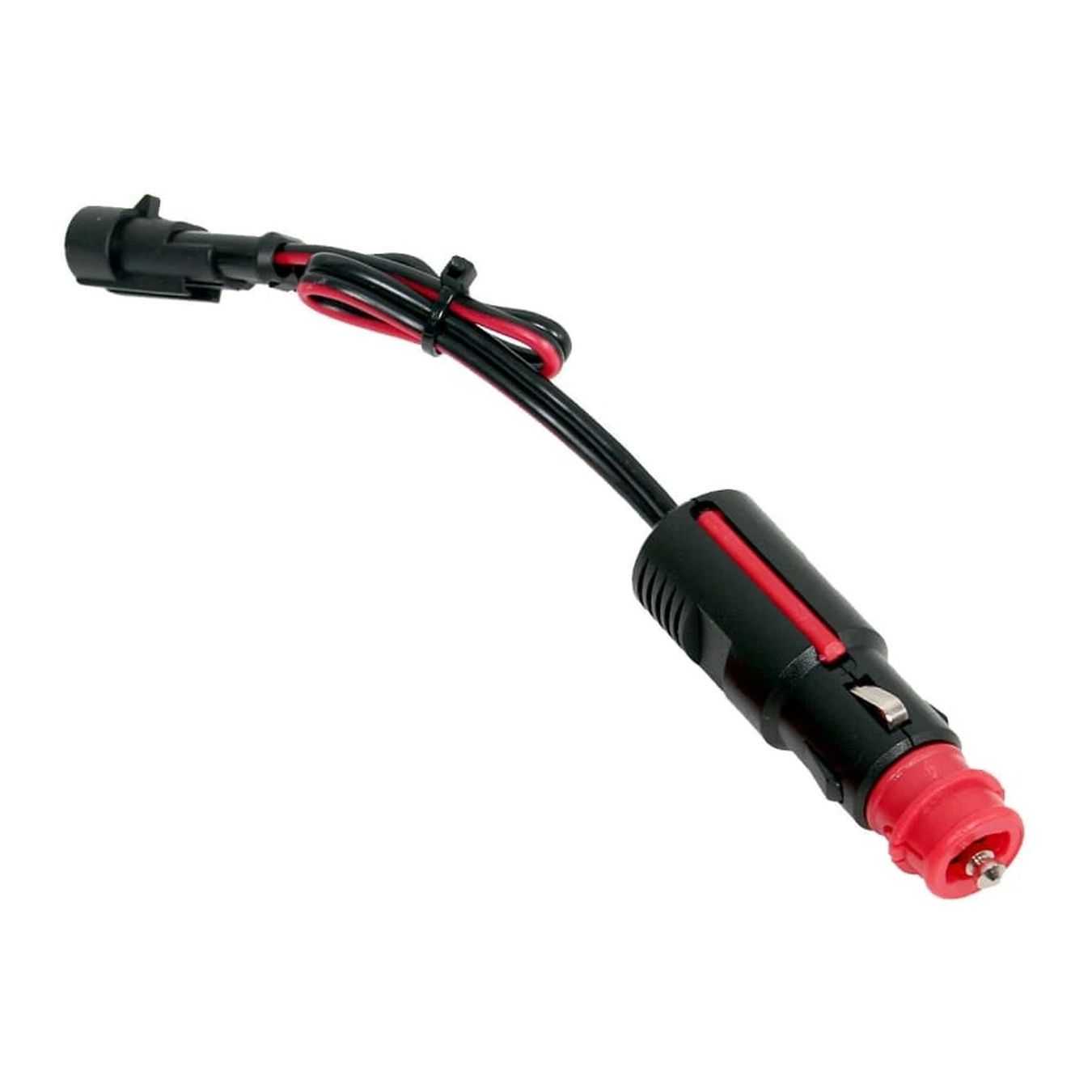

• Universal cigarette lighter adapter (both 12mm diameter for BMW and 18mm diameter)
• Full multilingual instructions

BC K900 EVO+ DETAILED SPECIFICATIONS
BC K900 EVO+ is the most complete motorcycle charger on the market, the only one that can be connected directly to the 12V socket of BMW motorcycles whatever the battery installed on board: it is in fact compatible with all 12V lead-acid and lithium batteries with the Can-Bus system.
It is possible to choose between 4 charging programs: Lead Acid for all traditional 12v batteries (even gel or sealed), Lithium for all 12V batteries both lithium-ion and LiFePO4, Pb-Acid Can-Bus and Lithium Can-Bus respectively for direct connection without the need to reach the battery or install additional wiring on the bike, to the DIN.4165 socket as standard on BMW motorcycles, the adapter of which is always included in the package.
All 4 charging programs are designed for a perfect and complete maintenance of all 12 V from 1.2 Ah up to 100 Ah.
The products bc battery controller charge the battery much faster than traditional battery chargers.

The BC K900 EVO+ model is able to restore sulphated batteries, recover 1.25V batteries (lowest level on the market) and is also designed for use on vehicles equipped with "micro-hybrid" start/stop systems.

Thanks to its spark-proof system (anti-spark) and its protections against overloads, polarity reversals and short circuits BC K900 EVO+ ensures a high level of protection.
Also equipped with a state-of-the-art microprocessor, the product is able to guarantee extreme efficiency in battery charging and minimize energy consumption.
The chargers and charge maintainers of the bc battery controller range being fully automatic can be left connected to the battery 24 hours a day / 7 days a week for whole months, even for years completely safely.

Inside the package there are convenient calipers and dei practical mounting eyelets to be left connected on the vehicle.
Thanks to the intuitive LED bar, which also guarantees perfect night vision, BC K900 EVO+ provides real-time information on the battery charge status, the running cycle and the selected program mode.
The product is granted a 3-year warranty and premium assistance directly at the factory, given the very few cases managed.

CHARGING ALGORITHM - CHARGING PROGRAM
The charger is equipped with an internal microprocessor that verifies the battery status in real time and performs 8 charge cycles independently.
• Step 1 - Initialization: Check that the battery is in optimal condition to be recharged/recovered by making sure that there are no short circuits between one or more battery cells.
• Step 2 - Recovery: If the battery is in an extreme discharge condition (starting from 1.25V), the device tries to perform a recovery in order to bring it to higher voltages, compatible with the next phase.
• Step 3 - Light Charging: If the battery is very low, the device provides a light pulse current, to allow the battery to pass the critical phase.
• Step 4 - Main Charge: During this phase the battery can recover up to 85-90% of its capacity, thanks to the charger's ability to deliver full current
• Step 5 - Desulfation / Absorption: in this phase in order to restore the remaining 10-15% of the battery capacity the device provides a "controlled overcharge" by desulfation / recovery of lead-acid cells (for mild or medium sulfation levels).
• Step 6 - Battery analysis: the device stops the power supply for a few tens of minutes and verifies that the battery is able to retain the charge received during the previous cycles.
This phase is repeated periodically at regular intervals.
• Step 7 - Maintenance: thanks to a specially designed electronic circuit, the device maintains the battery charge during periods of inactivity, without overheating, overcharging and loss of water / electrolyte.
• Phase 8 - Equalization: this phase is performed every 30 days in order to rebalance the battery cells, thus avoiding electrolyte stratification.


BC K900 EVO+ - FEATURES
• 8-cycle charging algorithm suitable for all types of 12 V lead-acid batteries & 7 charge cycles for all types of lithium batteries both lithium ion and LiFePO4, from 1.2 Ah up to 100 Ah.
 • Pair of green/red LEDs to indicate the charging phase and any errors.
- Green LED (CHARGE): running cycle (Charge, Desulfation, Maintenance...);
- Red LED (ERROR): diagnostic problem detected (pole reversal, short circuit, battery not connected...).
• Yellow LED trio that indicates in real time the selected program: Lead-acid, Lithium, Pb Can-Bus or Lithium Can-Bus
• Real-time monitoring dei battery parameters during all charge cycles.
• Battery overcharge protection: it is activated when the internal microprocessor detects a voltage higher than a predetermined value; no risk of bubble formation for all batteries on the market (even MF and Gel).

SAFETY
1. Reverse protection dei battery poles.
2. Protection against short circuit (even permanent).
3. Overheating protection: The supplied current is automatically limited in case of excessive heating of the device.

Sheet:
Input Voltage: 220÷240V ac, 50-60Hz
Charging voltage: 13.8V/14.4V - nom. 12V
Charging Current: 0.9A max
Operating temperature: -20°C - +50°C
Dimensions: 130 x 90 x 53 mm
